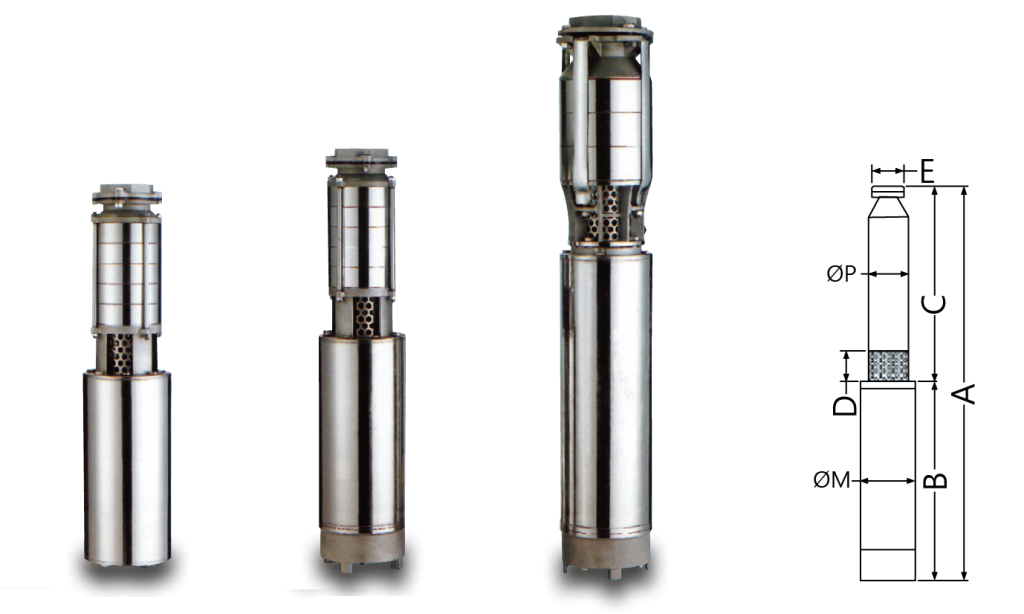

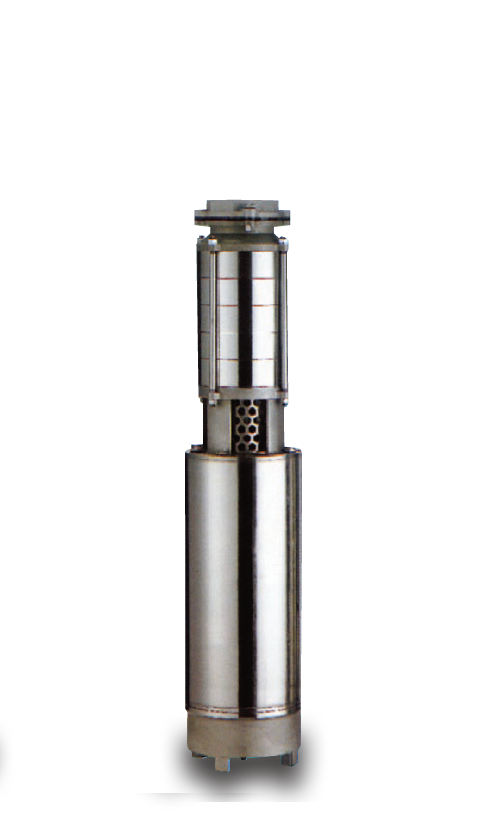

SPT series stainless steel pump for high rise

Add to inquiry list
Category:

Description



Type  Horsepower
HP		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 ØP
mm		 ØM
mm
SPT2504 single 1HP X 1Ø 517 242 275 45 71 96 96
SPT2504 1HP 527 252 275 45 71 96 125
SPT2506 2HP X 1Ø 640 310 330 45 71 96 96
SPT3505 2HP 600 252 348 45 71 96 125
SPT3507 3HP 674 252 422 45 71 96 125
SPT140-3 5HP 585 315 270 92 135 140 165
SPT170-4 7.5HP 697 345 352 92 135 140 165
SPT180-5 10HP 760 360 400 92 135 140 165
SPT200-6 15HP 837 390 447 92 135 140 165
SPT320-4 15HP 805 390 415 92 135 140 165
SPT200-8 20HP 1170 580 590 116 135 140 165
SPT280-4 20HP 1030 580 450 116 170 160 165
SPT200-10 25HP 1319 635 684 116 135 140 165
SPT340-5 25HP 1142 635 507 116 170 160 165
SPT400-5 30HP 1140 690 450 116 170 160 165
SPT280-6 30HP 1254 690 564 116 170 160 165
SPT420-5 35HP 1267 760 507 116 170 160 165
SPT440-5 40HP 1307 800 507 116 170 160 165
SPT440-6 50HP 1444 880 564 116 170 160 165
HT70-4 5HP 619 315 304 92 135 140 165
HT110-5 7.5HP 685 345 340 92 135 140 165
HT140-6 10HP 736 360 376 92 135 140 165
HT140-8 15HP 838 390 448 92 135 140 165











Type
TYPE		 Horsepower
HP		 Caliber
inch		 Standard performance Maximum performance
Head M Water volume LPM Head M Water volume LPM
SPT2504 single 1HP X 1Ø 1.5 24 100 44 150
SPT2504 1HP 1.5 24 100 44 150
SPT2506 2HP X 1Ø 2 43 100 66 150
SPT3505 2HP 2 36 120 55 180
SPT3507 3HP 2 50 120 76 180
SPT140-3 5HP 2~3 32 280 52 530
SPT170-4 7.5HP 2~3 43 410 76 640
SPT180-5 10HP 2~3 60 430 96 680
SPT200-6 15HP 2~3 78 430 112 760
SPT320-4 15HP 4 48 650 78 1210
SPT200-8 20HP 2~3 100 430 150 760
SPT280-4 20HP 4 60 650 102 1060
SPT200-10 25HP 3 122 430 187 760
SPT340-5 25HP 4 75 720 130 1060
SPT400-5 30HP 3~4 75 815 138 1350
SPT280-6 30HP 3~4 90 650 152 1060
SPT420-5 35HP 3~4 90 800 152 1520
SPT440-5 40HP 4~5 100 840 155 1660
SPT440-6 50HP 4~5 120 840 182 1660
HT70-4 5HP 2~3 45 160 78 265
HT110-5 7.5HP 2~3 52 250 90 420
HT140-6 10HP 2~3 70 280 112 530
HT140-8 15HP 2~3 90 280 150 530



1. All contents or specifications of this watch are mainly based on entities. If the product voltage or frequency is special, please order in advance. 2. Please inform the model or description of the purpose, number of phases, caliber, power supply, frequency… in order to select the most suitable model.
